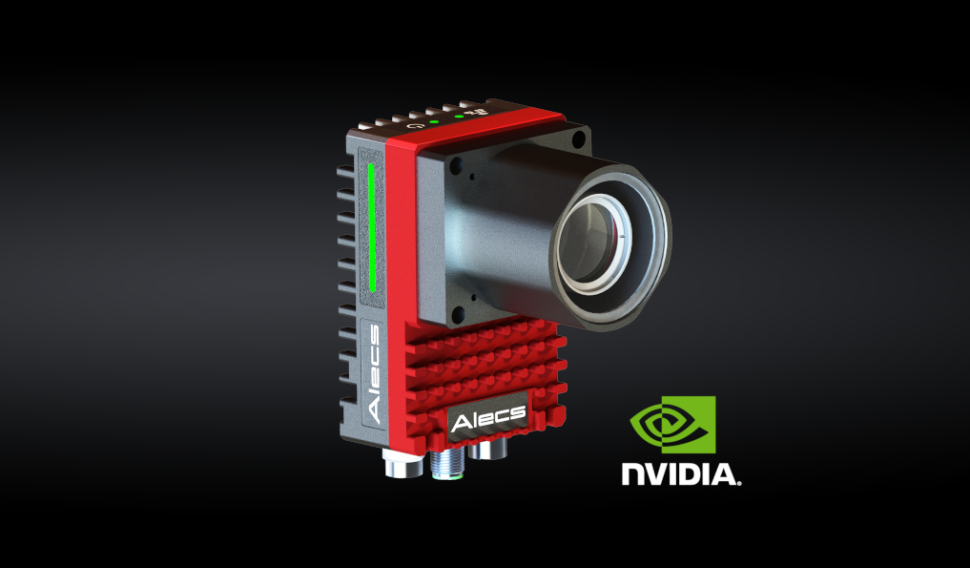

Alecs

Experience the future of machine vision. Intelligent, flexible, and powerful.

The All-In-One Machine Vision Solution

Benefit from design flexibility and a fast time-to-market

Alecs unites the strengths of Alvium and NVIDIA to create a powerful and flexible machine vision platform. With Alecs, you get:

Alvium's feature set and sensor variety, providing a comprehensive foundation for machine vision applications
NVIDIA's powerful Orin NX16 and Nano 8 SoMs, enabling complex AI algorithms and efficient processing
Support for up to 25W Power Mode, ensuring efficient and powerful processing
A robust industrial housing with IP67 ingress protection, vibration and shock robustness, and a wide operating temperature range from -20 to 65°C, ensuring reliable operation in demanding environments
An open platform design, allowing for seamless integration with third-party software and customization to your specific needs

This unique combination makes Alecs the perfect choice for anyone looking to leverage the benefits of machine vision and AI.

Built For Your Vision:

Alecs Is The Perfect Camera For You If:

You're looking for a reliable and future-proof machine vision solution with accelerated design-in processes and fast time-to-market.
You need enough computational power to run sophisticated software and AI lgorithms.
You demand high flexibility in application development.

// Benefits

Alecs, the Allied Vision Embedded Camera Solution, is designed to provide enough computational power to develop sophisticated software and AI algorithms with ease. Whether for object detection, tracking, classification, or other complex computer vision tasks, unlock the full potential of machine learning and deep learning applications.

Fast time-to-market: Accelerated design-in processes
Reliability: Based on Allied Vision's future-proof camera platform Alvium and the leading NVIDIA Jetson Orin SoM
Industrial-grade hardware: Robust and industrial housing with IP67 protection
Flexibility in application development
- On-board image processing and optimization features for high image quality
- Board Support Package based on Vimba X and integrated recovery mode to always ensure a safe state of the camera.
- Open eVision Image analysis libraries from Euresys are pre-installed and can be tested free of charge for 30 days.

// Features

High-resolution (5 and 12 MP) mono and color imaging
NVIDIA Jetson Orin processor
Indicator lights on left and right side (multi color)
2 Opto-In, 2 Opto-Out, 1 Strobe-Out, RS485-Out
IP67 ingress protection
M12 connectors for Ethernet and Power/IO
Separate M12 lighting connector to run external lights

The Right Accessories For Every Application

We offer various industrial grade accessories for Alecs cameras to suit your application best.

// Lenses Recommended For Alecs G1-510

Type 1/1.8" 6 mm F/1.4–16 Data sheet
Type 2/3" 8.5 mm F/1.3–16 Data sheet
Type 2/3" 12 mm F/1.8–16 Data sheet
Type 2/3" 16 mm F/1.6–16 Data sheet

// Lenses Recommended For Alecs G1-1242

Type 1.2” 16 mm F/2.4–16, with grub screws User Guide
Type 1.2” 25 mm F/2.4–16, with grub screws User Guide
Type 1.2” 35 mm F/2.4–16, with grub screws User Guide
Type 1.2” 50 mm F/2.4–16, with grub screws User Guide

// Interface Cables

Ethernet cable, M12 X-coded straight to RJ45 straight, high flexibility, 5 m / 10 m / 20 m

Data sheet

// Power And I/O Cables

M12 A-coded 12-pin connector to open ends with integrated power lines, 3 m Data sheet
M12 A-coded 12-pin connector to open ends with integrated power lines, 5 m Data sheet
M12 A-coded 12-pin connector to open ends with integrated power lines, 8 m Data sheet

// Camera Light

Mini Ring Light, white light, M12 A-coded 5-pin connector, 24 VDC ±5%, 365 g, IP65 Data sheet
Mini Ring Light, white light, with mounting plate, M12 A-coded 5-pin connector, 24 VDC ±5%, 365 g, IP65 Data sheet
Mini Ring Light, 470 nm, M12 A-coded 5-pin connector, 24 VDC ±5%, 365 g, IP65 Data sheet
Mini Ring Light, 530 nm, M12 A-coded 5-pin connector, 24 VDC ±5%, 365 g, IP65 Data sheet
Mini Ring Light, 625 nm, M12 A-coded 5-pin connector, 24 VDC ±5%, 365 g, IP65 Data sheet

// Power And Control Cables For External Camera Light

For external lights with a higher power consumption:

M12 A-coded 5-pin connector to M12 A-coded 5-pin connector and open ends, Y cable, 1 m Data sheet
M12 A-coded 5-pin connector to M12 A-coded 5-pin connector and open ends, Y cable, 3 m Data sheet
M12 A-coded 5-pin connector to M12 A-coded 5-pin connector and open ends, Y cable, 5 m Data sheet
