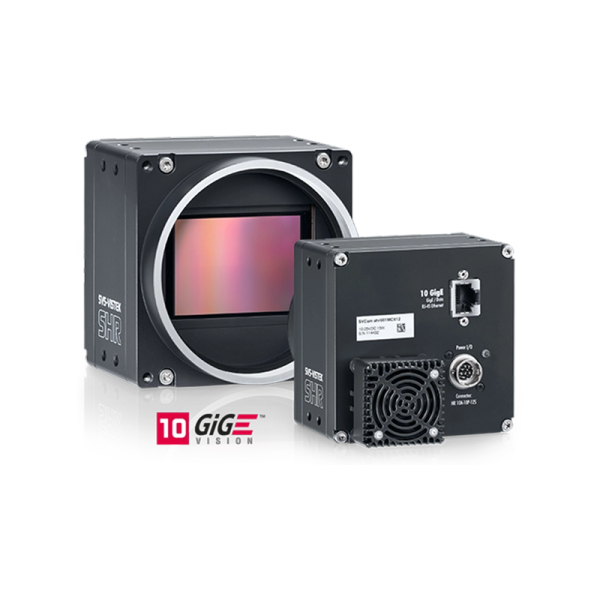

The SHR series offers image quality at the highest level with the highest resolutions. This is made possible by the special physical features offered by large pixels in large-format sensors. Added to this is the highest structural precision in sensor adjustment in a solid, thermally highly optimized housing. The large M72 lens mount with a flange distance of 19.55 mm can be adapted to any lens.
Made For Big Tasks
The economical and high-performance 10GigE interface offers up to 1.25 GB/s data transfer for these large images. A special frame grabber is not required.
Highlights of the SHR series (some features only on some models):
- User Defined Shading Correction
- Custom Defect Pixel Correction
- Up to 16 bit color depth
- Extremely low noise
- Up to 82 dB dynamic range
- Integrated 4-channel LED strobe controller
- Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS232
- Suitable for cleanrooms
