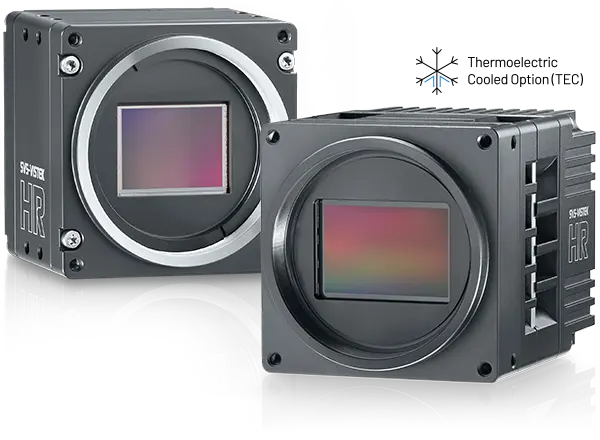

svs seriesimg hr hr t titelbild serie id73 269

HR-Series

High Resolution Cameras For Maximum Data Rate

The HR series combines high-resolution sensors with powerful machine vision interfaces, delivering up to 122 MP resolution and data rates of up to 50 Gbit/s. The 10GigE version uniquely features thermoelectric cooling/heating and advanced ventilation for stable sensor temperatures and excellent image quality.

HR - Speed Details

Benefit From High Data Rates At High Resolution!

The HR series combines high-resolution image sensors with powerful machine vision interfaces. With state-of-the-art interfaces, the HR achieves data rates of up to 50 Gbit/s and resolutions of up to 122 MP.

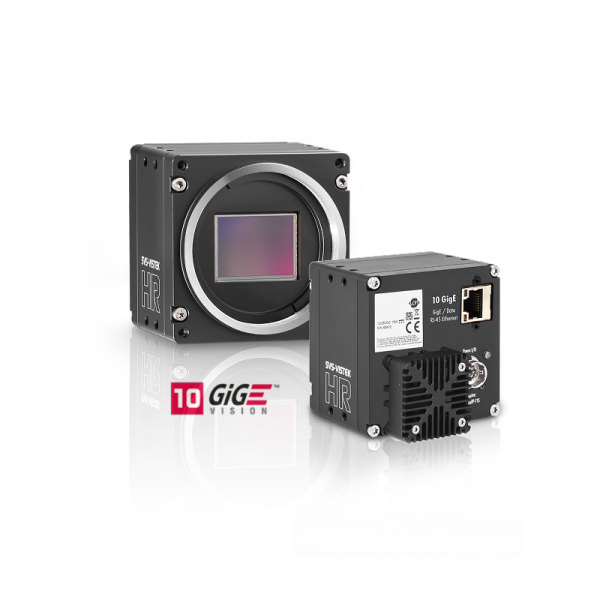

The 10GigE version also offers a world first: thermoelectric cooling/heating and an innovative ventilation system ensure an absolutely stable sensor temperature and therefore excellent image quality.

Data rates of up to 50 Gbit/s and resolutions of up to 122 megapixels
Thermoelectric cooling (TEC) and heating with advanced, dust-proof ventilation for stable sensor temperature

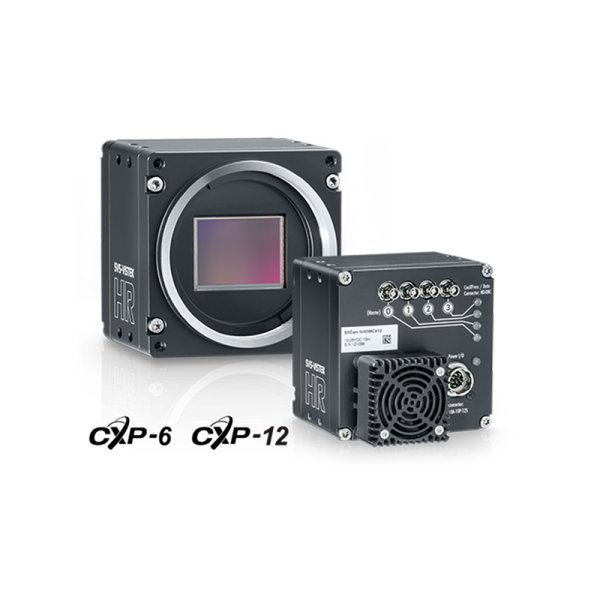

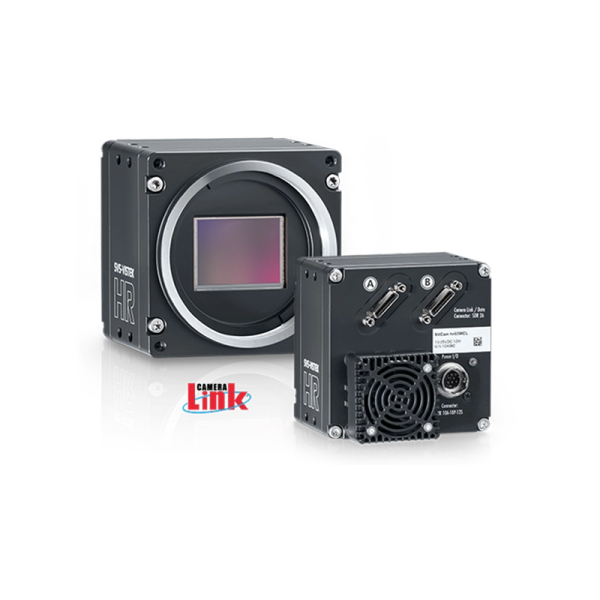

10GigE Vision, CameraLink, CoaXpress, and CoaXPress12 interfaces available

Built For Your Vision

HR Is The Perfect Camera For You If:

You need stable image quality and operation even with large sensors
You powerful machine vision interfaces for high data volume
You want to optimize your imaging task with a versatile lens connection, using the M58 lens thread
You demand a high level of camera and flash control and flexibility

// High Resolution At Maximum Data Rate

HR series cameras combine high resolutions with high data rates. The elaborately designed solid housing ensures excellent temperature management, which guarantees stable operation even with large sensors. The HR series is ideally equipped with the latest machine vision interfaces (10GigE Vision, Camera Link, CoaXPress).

High-resolution sensors require special care when adjusting the homogeneity of the image. Shading correction for demanding optical tasks and user-defined Defect Pixel Correction ensure outstanding linearity, homogeneity and low noise.

// Powerful Features

CMOS sensors from Sony, Gpixel, Canon and ON Semi
Monochrome and Color (Bayer Pattern / Auto White Balance)
Housing with M58 lens thread
At least 128 MB internal image memory, burst mode (10GigE)
Shading correction, defect pixel correction
ROI, LUT, binning, gamma, offset
GenICam and GenTL interface
Integrated multi-channel LED strobe controller
Industrial TTL-24V I/O interface with RS232, safe trigger function and programmable logic functions, sequencer
Suitable for cleanrooms

// One Of The Most Compact Cameras In Its Class

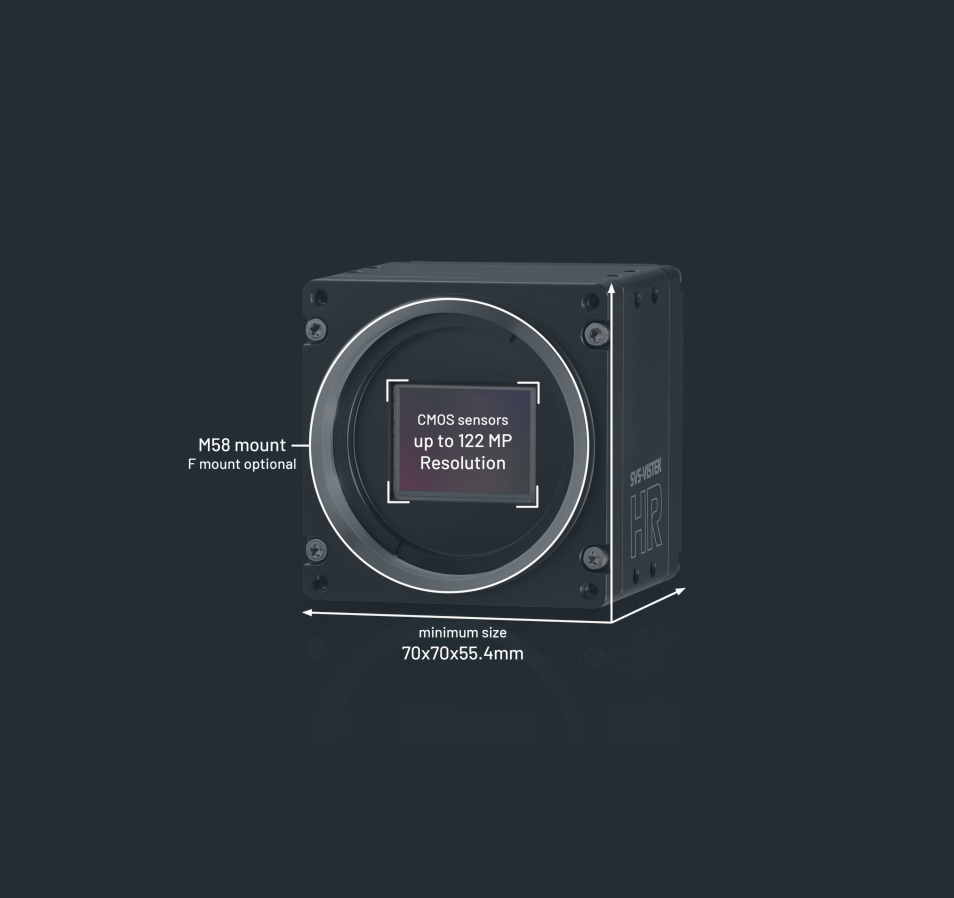

The M58 lens thread was designed so that almost all lenses can be connected using appropriate adapters (F-mount and EF-mount) and can be optimally adapted to your imaging task.

The IO concept offers programmable IO logic, sequencer, timer, SafeTrigger and an integrated 4-channel LED flash controller. The controller integrated in the GenICam tree of the camera can be controlled via any GenICam application (e.g. HALCON, MERLIC, MatLab, VisionPro) or the SV-Capture from the SVS-Vistek SDK.

The high resolution enables an extremely wide field of view and makes the HR series ideal for applications such as optical metrology, quality control and monitoring of large areas. The HR is available with 10GigE, CoaXPress or Camera Link interface.
